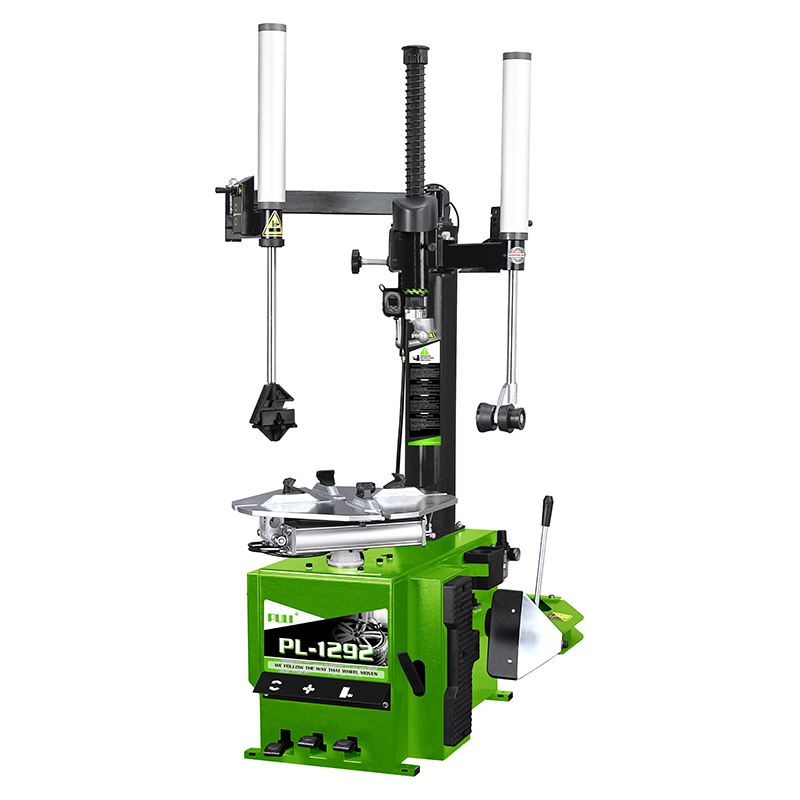

PL-1292 Semi-Automatic Swing Arm Tire Changer

PL-1292 tire changer machine has a pneumatic locking device between the vertical arm and 098 help arm, patent unique function make the locking operation extremely easy, and 26” large turntable and high power motor, which increase working strength.

SKU: PL-1292 Categories: , Tag:

Description

Semi-automatic swing arm tire changer machine for wheels with a rim from 14″ to 26″ (max. tire diameter 1143 mm./45″, max. tire width 406mm./16″). Suggested for low-mid volume shops, garages and repair shops.

PL-1291IT tire changer machine represents the PULI entry-level solution, suggested for low-mid volume shops, garages and repair shops. Simplicity is the strong point of this model, which combines solid and reliable design, PULI experience and a classic well-known operating mode.

Features:

1. Pneumatic locking device between the vertical arm and 098 help arm, patent unique function make the locking operation extremely easy
2. Semi-automatic swing arm
3. The round column is used as the air tank
4. Clamping jaws are totally one-step die casting
5. Quick air booster, esp. suitable for low profile tyres
6. Max working clamping 26″
7. RIM CLAMPING METHOD:26” large turntable and high power motor, which increase working strength
009 MULTI-FUNCTION LEFT HELP ARM
* 360° rotary tyre pressing help am, combined tyre pressing head has functions of lifting
tyre, pressing tyre, and central positioning.
* Central positioning function which can make wheel and turntable homocentric
* Function of lifting tire makes it easy to raise the low profile tires
INTERNATIONAL PATENT RIGHT 098 HELP ARM:
SIMPLE, RELIABLE AND STABLE
* Nylon pressing roller helps to build a little space 2-3mm between the rim and the bird
head, to avoid metal bird head-scratching the rim.
* Easy to operate, one man can dismantle big tire easily, such as tire for BMW 7serles

Additional information

External clamping

12~23"

Internal clamping

14~26"

Max.Wheel diameter

≤1143mm (45")

Max.Wheel width

≤406mm (16")

Working Pressure

8-10bar (116-145 psi)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

900*1130*950mm (3.0*3.7*3.1ft)

N/G weight(main body)

244/272 kg (538/600 lbs)
