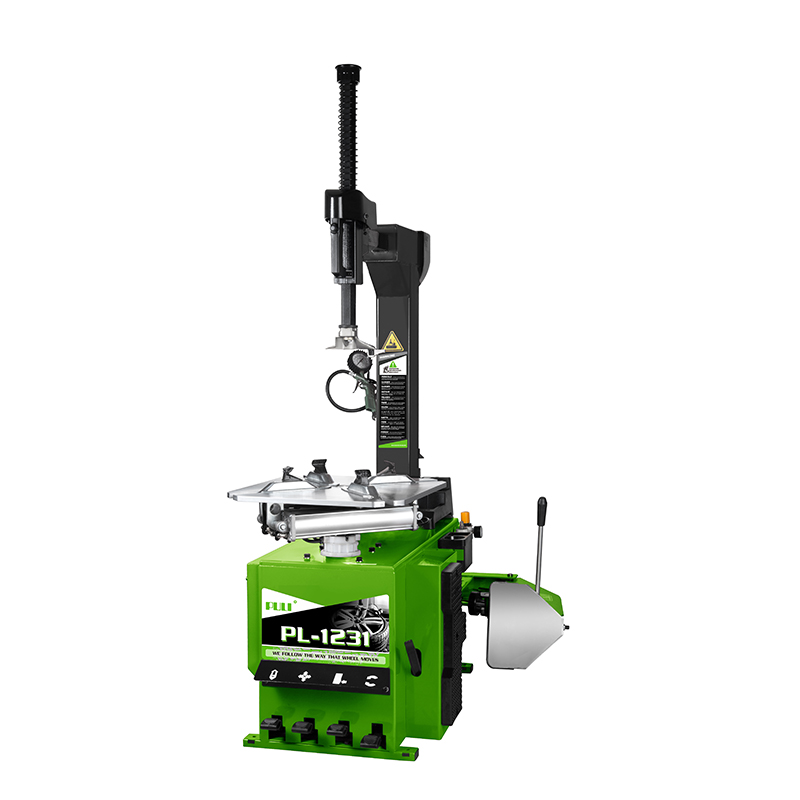

PL-1231 Semi-Automatic Tilt Back Tower Tire Changer

PL-1231 tire changer machine semi-Automatic tilt back tire changer with dual assist arm for tires with a rim from 12″ to 26″ (max. wheel diameter 1143 mm./45″, max. wheel width 406mm./16″). Suggested for low-mid volume tire-shops, garages and repair shops.

SKU: PL-1231 Categories: , Tag:

Description

Semi-Automatic tilt back tire changer with dual assist arm for tires with a rim from 12″ to 26″ (max. wheel diameter 1143 mm./45″, max. wheel width 406mm./16″). Suggested for low-mid volume tire-shops, garages and repair shops.

Features:

1. Full-automatic pneumatic tilting column
2. Vertical arm positioning automatically and synchronous pneumatic locked at any optional position
3. The round column is used as the air tank
4. Clamping jaws are totally one-step die casting
5. Max working clamping 26″
6. RIM CLAMPING METHOD:26” large turntable and high power motor, which increase working strength

Additional information

External clamping

12~23"

Internal clamping

14~26"

Max.Wheel diameter

≤1143mm (45")

Max.Wheel width

≤406mm (16")

Working Pressure

8-10bar (116-145 psi)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

900*1130*950mm (3.0*3.7*3.1ft)

N/G weight(main body)

228/256 kg (473/535 lbs)
