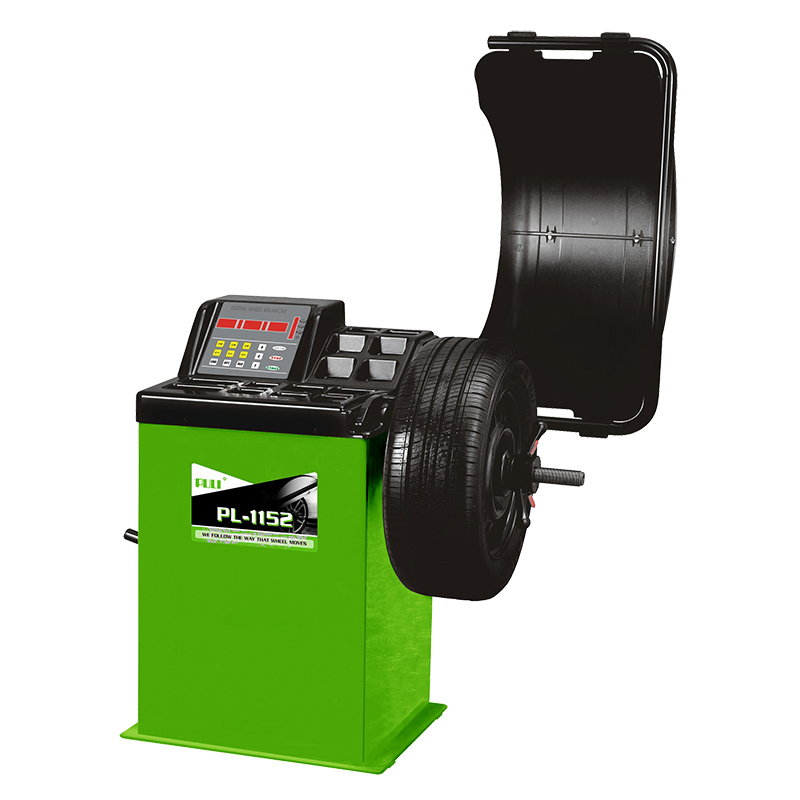

PL-1152 Digital Baseline Entry Level Wheel Balancer

The PL-1152 wheel balancer is an electronic wheel balancer with an easy-to-read LED display that offers Automatic 2D Data Entry via a single data entry gauge. There are 3 separate ALU adhesive weight configurations as well as an ALU-S mode to assure direct and accurate dynamic adhesive weight application.

SKU: PL-1152 Categories: ,

Description

The PL-1152 wheel balancer is an electronic wheel balancer with an easy-to-read LED display that offers Automatic 2D Data Entry via a single data entry gauge. There are 3 separate ALU adhesive weight configurations as well as an ALU-S mode to assure direct and accurate dynamic adhesive weight application.

Features:
1. High precision main shaft ensures repeated measuring accuracy
2. Automatic distance and wheel diameter measuring
3. Tracking sticking balancing mode can locate weights precisely and rapidly
4. With self-calibration and self-diagnosis functions
5. LED light & Digital display

Additional information

Product Code

PL-1152

Balancing Modes

5

Balancing speed

200 r.p.m

Rim diameter

252-610 mm 10"-24"

Rim width

40-510 mm 1.5"-20"

Split and hidden weight solution

Measuring time

8s

Balancing accuracy

±1g(±0.04 oz)

Max. wheel weight

65 kg (143 lbs)

Power supply voltage options

110v (1ph)/ 220v (1/3ph)/380v(3ph)

Option motor power

0.20/0.37kw

Noise level

< 70dB

N/G weight

77/97kg (170/201 lbs)

Package dimension

915*760*1180mm (3*2.5*3.9ft)
