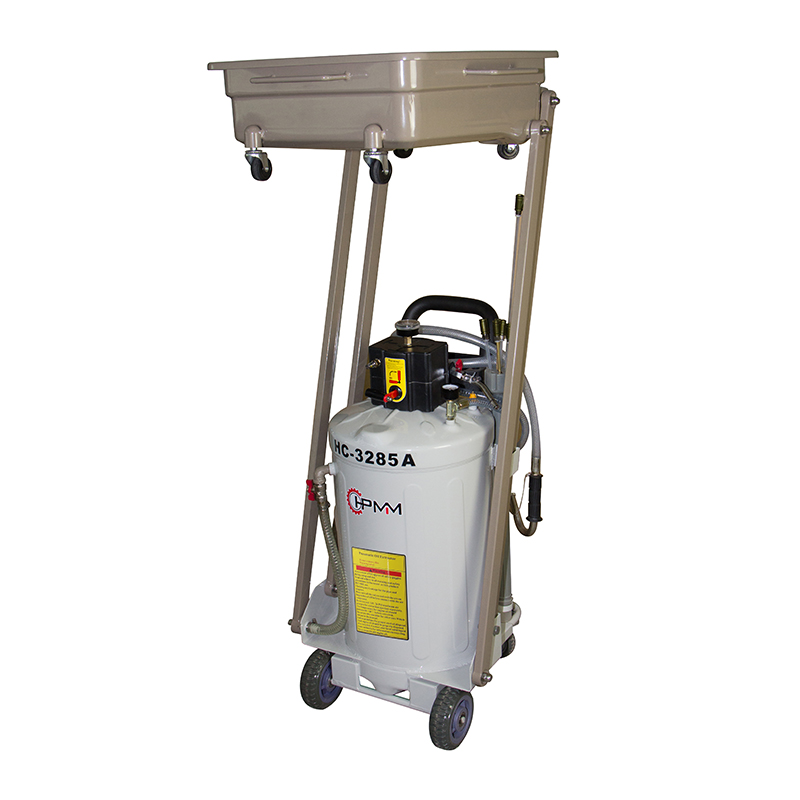

HC-3285A Pneumatic Oil Extractor

HC-3285A Pneumatic Oil Extractor,The Portable HC-3285A Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.

SKU: HC-3285A Categories: ,

Description

HC-3285A Pneumatic Oil Extractor,The Portable HC-3285A Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.

Compressed air is used as power source for all functions, ensure operational safety, environmental friendly and low consumption.
Vacuum generation device to achieve high speed vacuum extraction, strong negative pressure capability.
Various diameter of extraction probes are provided to fit the use of different cars.
The machine is applies to extraction and temporary storage of all mechanical, lubricating oil. Strictly prohibit in extraction of brake fluid, gasoline, diesel, dismantle free cleaning fluid and any solvent that contains of Methanol, ketone and flammable, corrosive liquid etc.

Additional information

Model

HC-3285A

Air pressure(Bar)

6~8

Oil ejection pressure (Bar)

0.7~1.0

Air consumption (L/Min.)

200

Vacuum (Bar)

0~-1

Minimum height(mm)

Oil tank 950

Oil tray 242

Maximum height(mm)

1550

Oil tank storage (Liter)

80

Oil tray volume (Liter)

20

Oil temperature (℃)

40~80

Outer box dimension(mm)

Oil tank 570*540*1020
Support shelf 1310*100*80
Oil tray 735*635*225

Oil extraction probes

6pcs
