HomeShop EquipmentHC-2297 Pneumatic Oil Extractor

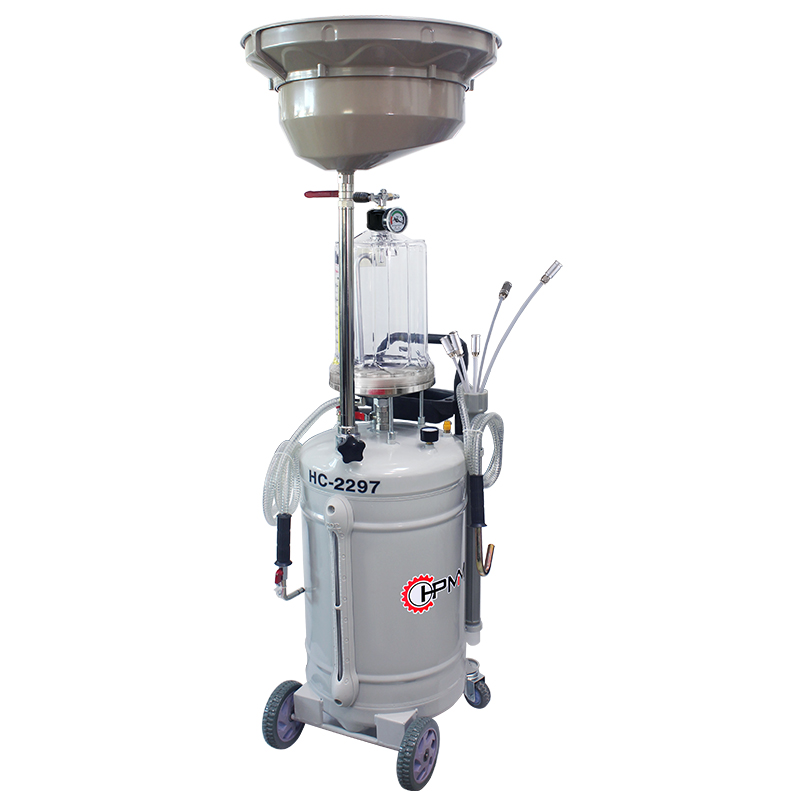

HC-2297 Pneumatic Oil Extractor

HC-2297 Pneumatic Oil Extractor,The Portable HC-2297 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.

SKU: HC-2297 Categories: ,

Description

HC-2297 Pneumatic Oil Extractor,The Portable HC-2297 Air-Operated Oil Extractor is a vacuum-charged unit that’s ideal for extracting used oil and other fluids from almost any vehicle.

Functions: Remove and extract waste fluids or oil out from the engine and etc. with a flexible PVC tube and robust CU probe.

1.Vacuum&Explosion-proof integrated mechanism(Patented)
2. Modular Cylinder(Patented)
3. Tool tray
4. Damage-free lifting rod locking mechanism
5. Liquid level display cover(Patented)
6. Waste oil collection
7. Resistant PVC wheel

Additional information

Tank capacity

80L

Collection bowl capacity

16L

Modular cylinder capacity

10L

Air inlet pressure

6-8Bar

Air inlet connection

1/4”

Air pressure for oil discharge

0.7~1Bar

Vacuum degree

-1~0Mpa

Oil temperature range

40-60℃

Suction Speed(max.)

6.5Liter/m

N/G weight

18.5/21.5kgs

Package dimension

470*440*960mm
