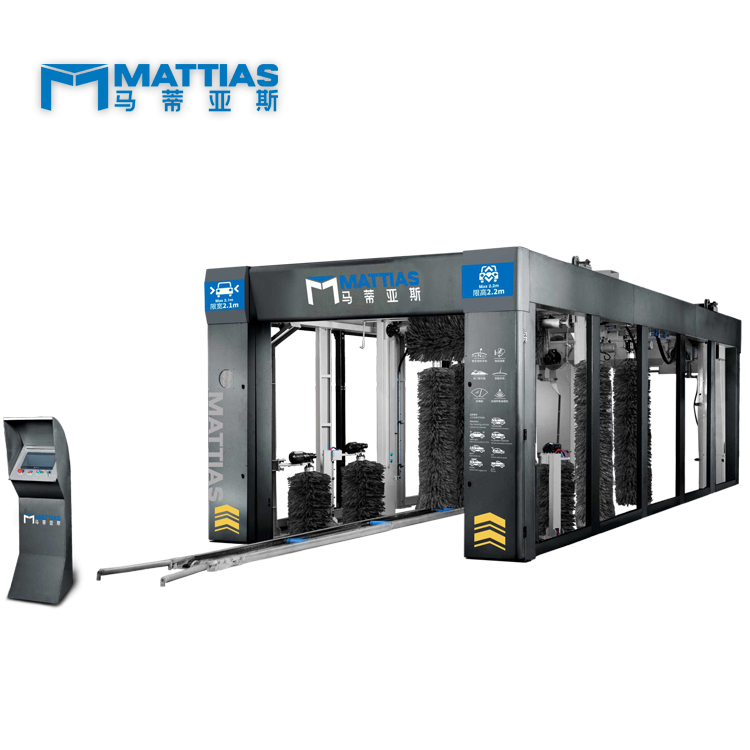

M-SD0900D Tunnel Car Wash Machine

M-SD0900D Tunnel Car Wash Machine

M-SD0900D Tunnel Car Wash Machine

M-SD0900D tunnel car wash system has 9 brushes and will wash every aspect of a car, all while using less water and lower power consumption. This car wash system improves washing efficiency, saves utilities, and increases customer profits, making this conveyor car wash a popular system among our customers.

Categories: ,

Description

This M-SD0900D tunnel car wash system has 9 brushes and will wash every aspect of a car, all while using less water and lower power consumption. This car wash system improves washing efficiency, saves utilities, and increases customer profits, making this conveyor car wash a popular system among our customers.

Product Features：

  • One click on-off, wireless control, smart pay system
  • vehicle type detection technology
  • Side brush reversing washing technology
  • Side brush beyond centerline technology
  • Side brush vehicle head positioning technology
  • Top brush contour imitation technology
  • Fault self-checking system
  • Smart parking guidance system

Additional information

Applicable Car Types

Passenger car, SUV, minivan, and other vehicles with less than 7 seats
Single Car Wash Time

55~60vehicle/hour

Functional Configuration

Dryer System Top Dryer 2 contour-following lifting dryers
Side Dryer 2 fixed dryers
Brush System Number of brushes 1 x Top Brush,4 x Side Brush,4 x Small brush
Top Brush Electric Contour-following lifting
Side Brush Motor-driven, chain-operated opening and closing
Side brushes follow the car for scrubbing Standard
Small brush Standard small vertical brush
Material of Brush Japanese EVA foam brush
Wash Liquid System Car Wash Liquid Standard siphon liquid(User-customized mixing ratio car wash soap)
Optional ratio pump for automatic mixing
Water Wax Standard siphon liquid(User-customized mixing ratio water wax)
Optional ratio pump for automatic mixing
Travel system
AGV collision protection Standard
Control system Mitsubishi PLC control system
Chassis Flushing Optional
Display 10-inch LCD touch screen
Car wash quantity tracking Standard
Fault self-diagnosis Standard
Smart parking guidance Standard
Overall structure Hot-dip galvanizing of welded steel frames
Multi-stage submersible pump Standard
High-pressure water pre-rinsing Standard (stainless steel vertical pump)
Intelligent low-temperature start-stop system Optional
Voice broadcast system Optional
Customer-supplied water tank specifications 2Ton
Customer-supplied air compressor specifications 2.2kW, 120L, 0.8MPa

Technical Parameters

Applicable Car Types Passenger car, SUV, minivan, and other vehicles with less than 7 seats
Max.Washable Car Dimensions(L*W*H) （unlimited length） × 2.2m × 2m
Single Car Wash Time 55~60vehicle/hour
Single Car Shampoo Consumption around 30mL/vehicle
Single Car Water Wax Consumption around 30mL/vehicle
Single Car Power Consumption  around 2 degrees/vehicle
Single Car Water Consumption around 150L/vehicle
Machine Dimensions(L * W * H) 11.88m × 3.8m × 3.44m
Installation Dimensions(L * W * H) 10m × 4m × （＞4m）
Air Source Requirement 0.75~0.9MPa
Rated Voltage of Machine 3PH AC380V 50Hz
Rated Power of Machine 39.53kW
Power of Top Brush Rotation Motor 0.75kW*1
Power of Top Brush Lifting Moto 0.75kW*1
Power of Side Brush Rotation Motor 0.75kW*4
Side Brush Opening and Closing Motor 0.18kW*2
Side Brush Travelling Motor 0.18kW*1
Small Brush Motor 0.37kW*4
Travelling Motor 1.5kW*1
Power of Top Dryer 5.5kW*2
Top Dryer Lift Motor 0.75kW*1
Side Dryer Motor 5.5kW*2
Submersible Pump Motor 2.2kW*2
Water Pump Pressure 0.6MPa
Power of High-pressure Water Pump Motor 4kW*1
Power of High-pressure Water Pump Motor 0.18kW*2
Pressure of High-pressure Water Pump 2MPa
