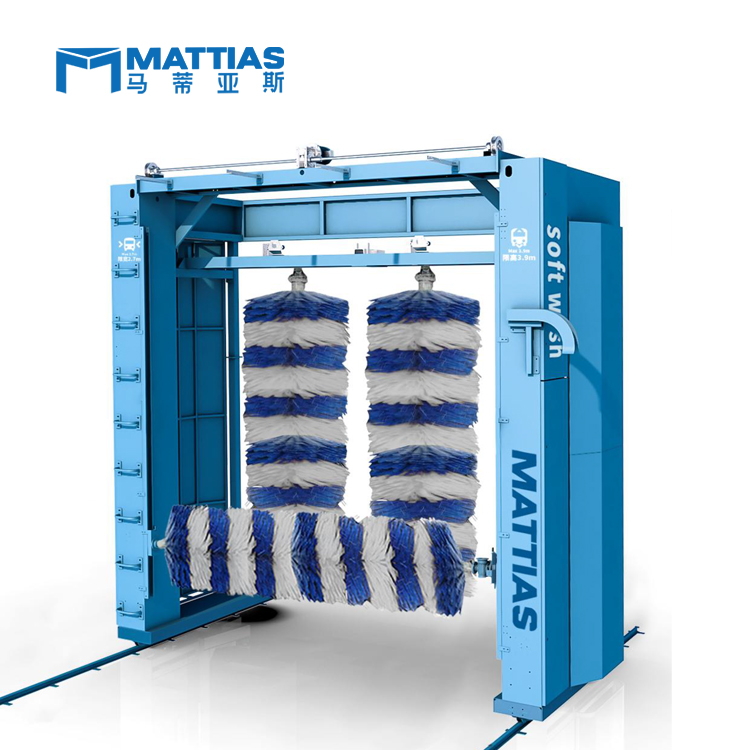

M-BS0300Y Roll-Over Bus Car Wash Machine

M-BS0300Y Roll-Over Bus Car Wash Machine

Mattias introduces an all-new, in-bay wash system that offers your customers and higher profit potential for you. The all-new M-BS0300Y three-brush bus wash machine, the gantry-style workhorse is loaded with technologically advanced features and controls. Designed for easy installation and maintenance, the M-BS0300Y bus wash machine is a compact profit-maker that will have you cleaning up in no time.



Description

Mattias introduces an all-new, in-bay wash system that offers your customers and higher profit potential for you. The all-new M-BS0300Y three-brush bus wash machine, the gantry-style workhorse is loaded with technologically advanced features and controls. Designed for easy installation and maintenance, the M-BS0300Y bus wash machine is a compact profit-maker that will have you cleaning up in no time.

This drive-through system is the perfect friction wash cleaning solution for transit, paratransit, and school buses. The most popular configuration includes an overlapping 3-brush system with rear wrap functionality, combined with a high-pressure spinner and v-sprays for touchless cleaning of the front surfaces, bike racks, behind the bike racks, mirrors, wheels, and chassis.

Product Features:

  • The application of advanced equipment can greatly improve the image of the store.
  • It’s available to clean 12-15 vehicles per hour, and the efficiency is significantly improved.
  • Can be used for 15 years or wash more than 500,000 cars, cost-effective.
  • The equipment uses a large number of imported components to ensure the quality of the product and a low failure rate.
  • Make customers not only make money in business but also make money steadily.
  • Comes with a fault identification code. easy to identify and troubleshoot.
  • The most convenient choice of follow-up product packages.
  • The powerful after-sales service support provides a good base for your business.

Additional information

Applicable Car Types

Buses / Large passenger transport vehicles / Container trucks (excluding roof washing)

Single Car Wash Time

10~20 vehicles / hour

Single Car Shampoo Consumption

Around 0.35mL/vehicle

Functional Configuration

Product Models M-BS0300Y
Brush System Top Brush 1
Side Brush 2
Small brush N/A
Material of Brush Nylon brush
Wash Liquid System Car Wash Liquid Standard ratio pump for automatic mixing
Travel system Motor-driven, chain-operated traveling
AGV collision protection Standard
Control system Mitsubishi PLC control system
Remote control Optional
Display 10″ LCD Touch Screen
Car wash quantity tracking Standard
Fault self-diagnosis Standard
Smart parking guidance Standard
Overall structure Hot-dip galvanizing of welded sheet metal frames
Multi-stage submersible pump Standard(Water pump pressure 0.6MPa)
High-pressure water pre-rinsing Optional
Intelligent low-temperature start-stop system Optional
Voice broadcast system Optional
Customer-supplied water tank specifications 3 Tons
Customer-supplied air compressor specifications 2.2kW, 120L, 0.8MPa

Technical Parameters

Applicable Car Types Buses / Large passenger transport vehicles / Container trucks (excluding roof washing)
Max.Washable Car Dimensions(L*W*H) ≤12.5 × 2.5 × ≤3.6
Single Car Wash Time 10~20 vehicles / hour
Single Car Shampoo Consumption Around 0.35mL/vehicle
Single Car Power Consumption Around 2 degrees/vehicle
Single Car Power Consumption Around 200L/vehicle
Machine Dimensions(L * W * H) 2.751m×4.62m×5.3m
Installation Dimensions(L * W * H) 6m × 20m
Rail Length 18m
Air Source Requirement 0.6~0.8MPa
Rated Voltage of Machine: 3ph AC380V 50Hz
Rated Power of Machine: 8.15kW
Power of Top Brush Rotation Motor 1.1kW*1
Power of Top Brush Lifting Motor 0.75kW*1
Power of Side Brush Rotation Motor 1.5kW*2
Side Brush Opening and Closing Motor 0.18kW*2
Small Brush Motor N/A
Travelling Motor 0.37kW*2
Submersible Pump Motor 2.2kW*1
Water Pump Pressure 0.6MPa
Power of High-pressure Water Pump Motor 4kW*1(Optional)
Pressure of High-pressure Water Pump 2MPa(Optional)
