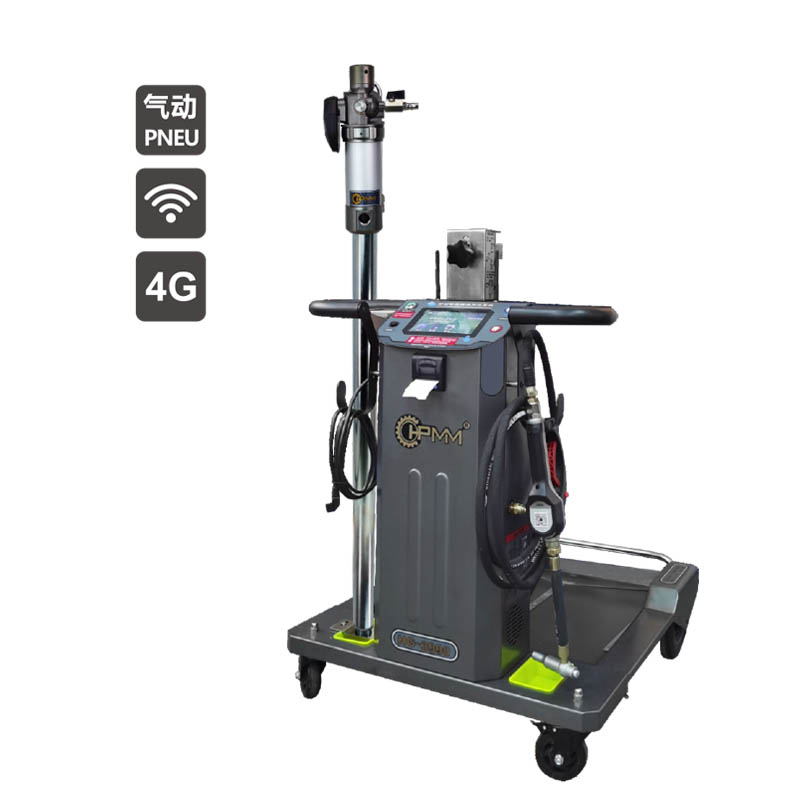

HG-3990 Wireless Mobile Pneumatic Oil Pump Unit

The HG-3990 is a wireless mobile electric oil pump unit with a special oil drum locking mechanism, wear-resistant guide mechanism, patented heavy-duty trolley design, dual power mode, 7-inch industrial touch screen, human-machine interaction, mobile app, and computer terminal control, ergonomic handrail, universal wheel, and built-in wheels to prevent oil and water splashing. It has a load capacity of 260kg.

SKU: HG-3990 Category:

Description

The HG-3990 is a wireless mobile electric oil pump unit with a special oil drum locking mechanism, wear-resistant guide mechanism, patented heavy-duty trolley design, dual power mode, 7-inch industrial touch screen, human-machine interaction, mobile app, and computer terminal control, ergonomic handrail, universal wheel, and built-in wheels to prevent oil and water splashing. It has a load capacity of 260kg.

1. Oil Drum Locking Mechanism
Equipped with a special oil drum locking mechanism.

2. Guide Mechanism
Wear-resistant, scratch-resistant, easy-to-load and unload oil drum guide mechanism.

3. Patented Heavy Duty Trolley Design
The unique tilting as an assembly function of the heavy-duty trolley allows the residual oil in the drum to be pumped clean, without wasting oil.

4. Oil Drum Locking Mechanism
Equipped with a special oil drum locking mechanism.

5. Guide Mechanism
Wear-resistant, scratch-resistant, easy-to-load and unload oil drum guide mechanism.

6. Patented Heavy Duty Trolley Design
The unique tilting assembly function of the heavy-duty trolley allows the residual oil in the drum to b pumped clean, without wasting oil.

7. Dual Power Mode
Dual power automatic switching design. Automatic and seamless conversion between AC and battery power.

8. 7-inch Industrial Touch Screen
Large screen display, simple and convenient operation via touch screen.

9. Human-machine Interaction
Available to record customer’s license number, preset recharging amount, and other useful functions.

10. Mobile APP And Computer Terminal
Oil recharging operation can be controlled via APP and PC software. Stable signal, and no data drops.

11. Ergonomic Handrail
Ergonomic handrail with soft protective cover

12. Universal Wheel
Universal wheel in Φ200*60 diameter is noiseless and capable of carrying a load, with double axles and top brake.

13. Built-in Wheels
The built-in wheels are designed to prevent oil and water from splashing on the floor and contaminating the equipment when moving.
The load capacity is rated at 260kg.

Additional information

Model

HG-3990

Intake pressure

3-8bar

Max. fluid output pressure

24 bar (when intake pressure is 8 bar)

Oil pum poutlet flow rate

≤35L/min

Suction pipe(Φ)

34mm

Interface thread standard

1/2“ BSP

Air inlet standard

Type C quick connector

Bearing

260KG
