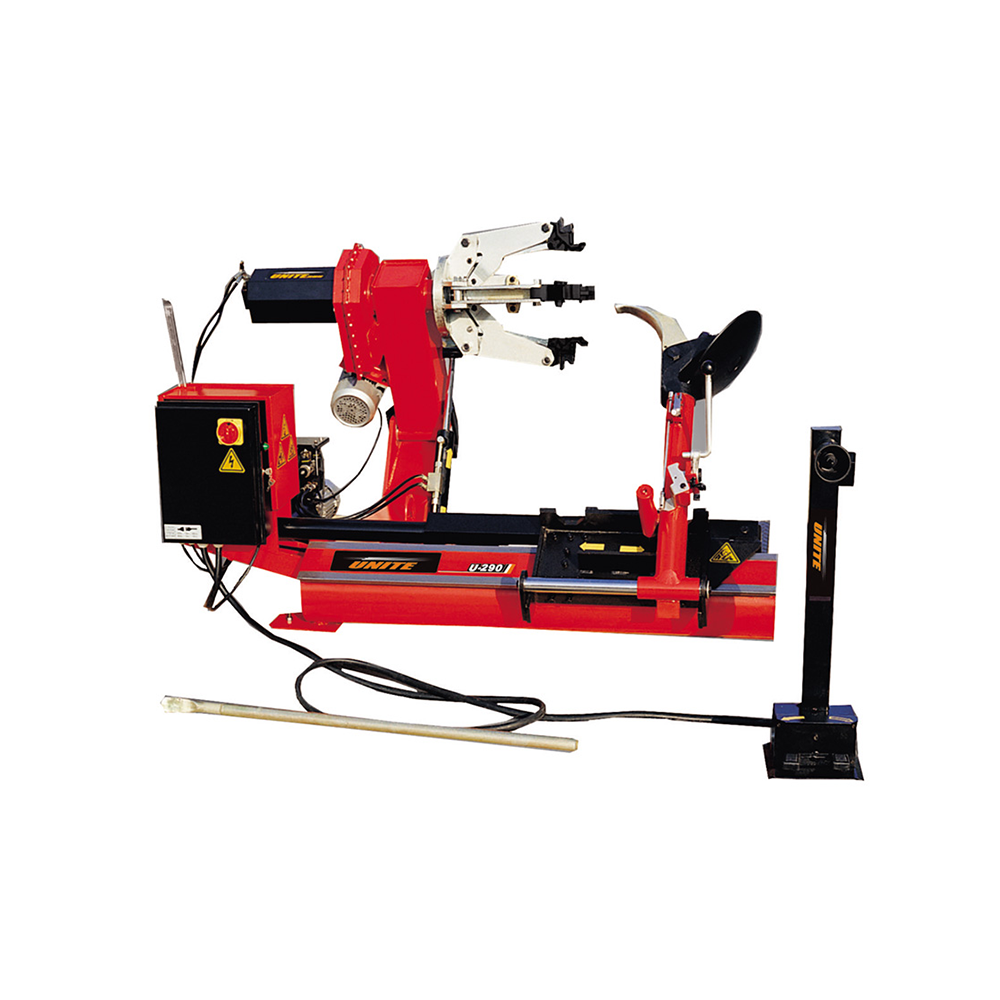

Heavy-Duty Truck Tire Changer / Joystick Control
The U-290 is a heavy-duty tire changer that handles truck, bus and commercial van tires with ease. Comes with joystick control.
Features:
1. Clockwise and anticlockwise rotation of the clamp range from 14″-26″.
2. Automatic electrohydraulic operation
3. Movable control unit
4. Hydraulic motor with pressure adjustment device
5. Automatic fast turning
6. Lifting arm and toll carrier arm can move simultaneously to get closer.
7. Clamping capacity :14″-26″
| Specification |
| Air supply pressure |
8-10bar (116-145 psi) |
| Motor power |
0.55/0.75/1.1 kw |
| Noise Level |
≤75 dB |
| Product |
Heavy-duty truck tire changer |
| Product Code |
U-290 |
| Internal clamping |
14~26" |
| Max.wheel diameter |
≤1600mm (63") |
| Max.wheel width |
≤780mm (30") |
| N/G weight |
520/670 kg (1146/1477 lbs) |
| Package dimension |
1580*2000*850mm (5.2*6.6*2.8ft) |
