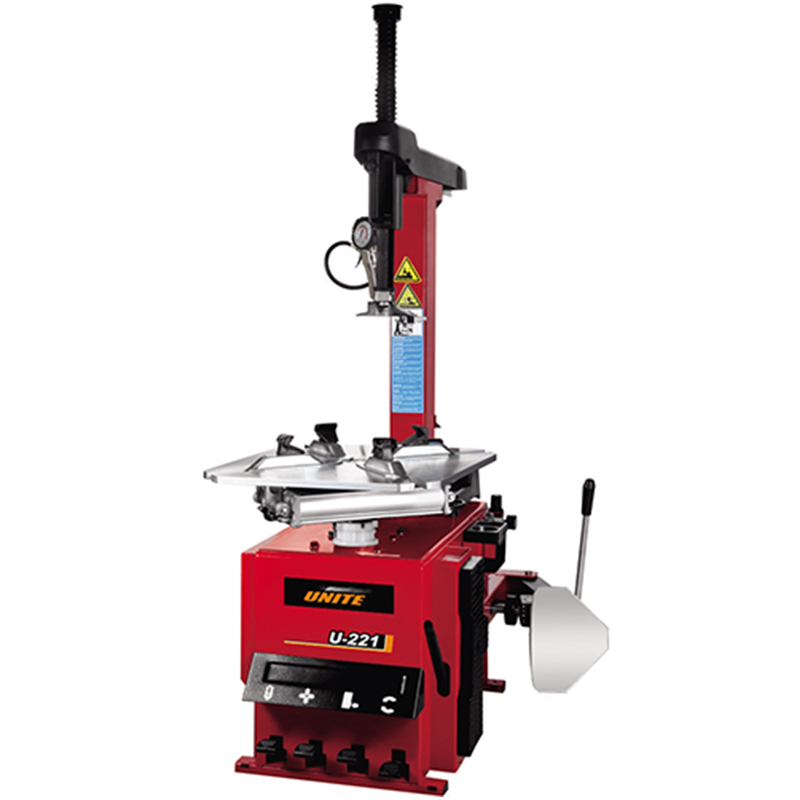

Racing semi-automatic tilt back tire machine for tires with a rim from 12" to 24" (max. tire diameter 1000 mm./39", max. tire width 355mm./14"). Suggested for low-mid volume garages and repair shops.
Features:
1. Tilt back tower design. The pneumatic vertical arm automatically positions the mounting head on the rim.
2. Adopt rugged & durable one-piece casting jaws.
| Specification |
| Air supply pressure |
8-10bar (116-145 psi) |
| Optional power supply |
110v (1ph)/ 220v (1/3ph)/380v(3ph) |
| Motor power |
0.55/0.75/1.1 kw |
| Noise Level |
≤75 dB |
| Product |
Semi-automatic Swing Arm
|
| Product Code |
U-221 |
| External clamping |
10~21" |
| Internal clamping |
12~24" |
| Max.wheel diameter |
≤1000mm (39") |
| Max.wheel width |
≤355mm (14") |
| N/G weight |
210/234 kg (462/514.8 lbs) |
| Package dimension |
960*760*800mm (3.1*2.5*2.6ft) |
