HomeWheel ServicePL-1291 Semi-Automatic Swing Arm Tire Changer

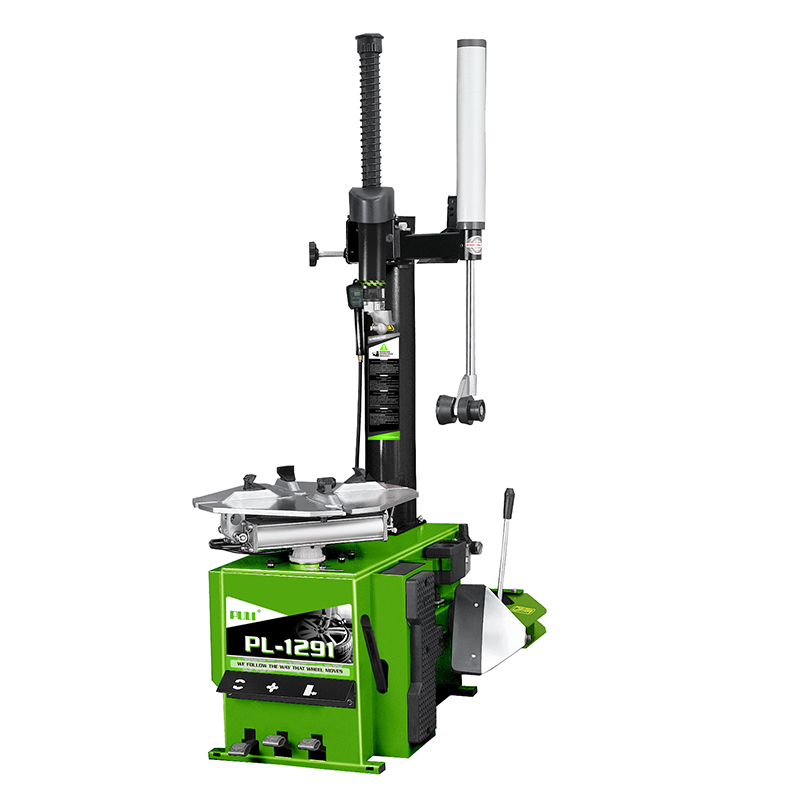

PL-1291 Semi-Automatic Swing Arm Tire Changer

PL-1291 tire changer machine represents the PULI entry-level solution, suggested for low-mid volume shops, garages and repair shops. Simplicity is the strong point of this model, which combines solid and reliable design, PULI experience and a classic well-known operating mode.

Description

Semi-automatic swing arm tire changer machine for wheels with a rim from 14″ to 26″ (max. tire diameter 1143 mm./45″, max. tire width 406mm./16″). Suggested for low-mid volume shops, garages and repair shops.

PL-1291 tire changer machine represents the PULI entry-level solution, suggested for low-mid volume shops, garages and repair shops. Simplicity is the strong point of this model, which combines solid and reliable design, PULI experience and a classic well-known operating mode.

Features:

1. INTERNATIONAL PATENT 098 HELP ARM (RIGHT): makes low profile tyre changing easier.

2. Promising a greater work strength with a bigger rugged cabinet and 26″ turntable.

3. Adjustable pressing shovel helps to press tyre with less effort.

Additional information

External clamping

12~23"

Internal clamping

14~26"

Max.Wheel diameter

≤1143mm (45")

Max.Wheel width

≤406mm (16")

Working Pressure

8-10bar (116-145 psi)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

900*1130*950mm (3.0*3.7*3.1ft)

N/G weight(main body)

241/269 kg (530/592 lbs)
