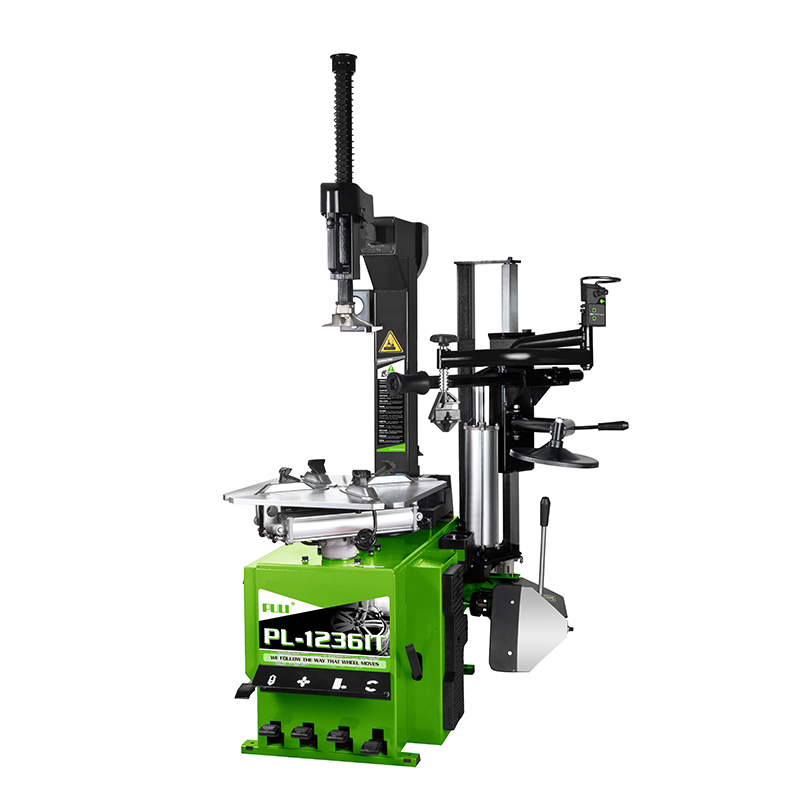

PL-1236IT Arm Wheel Clamp Tire Changer

The PL-1236IT Tire Changer arm (mounted on the right side) performs almost all the same functions as the dual arms. This model tire changer clamping jaws are totally one-step die casting, durable, and a Quick air booster makes the tire and rims joint instantly, especially suitable for the low-profile tire.

SKU: PL-1236IT Categories: , Tag:

Description

The PL-1236IT Tire Changer arm (mounted on the right side) performs almost all the same functions as the dual arms. This model tire changer clamping jaws are totally one-step die casting, durable, and a Quick air booster makes the tire and rims joint instantly, especially suitable for the low-profile tire.

Features:

1. Full-automatic pneumatic tilting column
2. Vertical arm positioning automatically and synchronous pneumatic locked at any optional position ;
3. High column, wider&bigger machine body increase working coverage and make it labor-saving and convenient to demount/mount tire
4. Suitable for bigger and wider various new tires, including some low profile tyres
5. Independent 036 right help arm system:
*Pneumatic tire lifting device which can be lifted at any position makes it labor-saving and convenient to demount/mount tires.
*Nylon pressing roller, can easily allow the separation of tire and rim
*360o rotary tire pressing help arm, with combined tire pressing head has functions of pressing tire and central positioning.
*Central positioning function: make rim and tire detached & clamp jaws quickly and conveniently
6.26″enlarged turntable and high-power motor, which increases working strength
7. Clamping jaws are totally one-step die casting, durable
8. Max working clamping 26″
9. Quick air booster makes the tire and rims joint instantly, especially suitable for the low-profile tire.

Additional information

External locking rim dimensions

12~23″

Internal locking rim dimensions

14~26″

Max.Wheel diameter

1143 mm(45″)

Max.Wheel width

406 mm(16″)

Working Pressure

8-10 bar(116-145 PSI)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

1130*900*1050 mm(3.7*3.0*3.4 ft)

Dimension(036 help arm)

1230*450*350 mm(4.0*1.5*1.0 ft)

N/G weight(main body)

306/345 kg(673/759 lbs)
