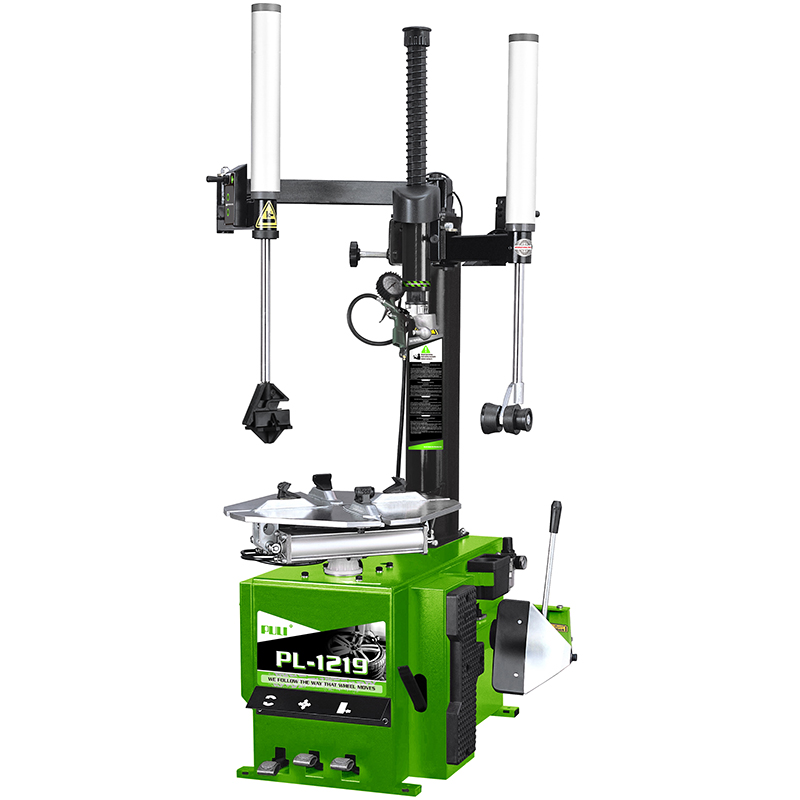

PL-1219 Semi-Automatic Swing Arm Tire Changer

PL-1219  tire changer machine represents the Unite entry-level solution, suggested for low-mid volume shops, garages and repair shops. Simplicity is the strong point of this model, which combines solid and reliable design, Unite experience, and a classic well-known operating mode.

SKU: PL-1219 Categories: , Tag:

Description

Semi-automatic swing arm tire changer machine for wheels with a rim from 12″ to 24″ (max. tire diameter 1000 mm./39″, max. tire width 355mm./14″). Suggested for low-mid volume shops, garages, and repair shops.

PL-1219  tire changer machine represents the Unite entry-level solution, suggested for low-mid volume shops, garages and repair shops. Simplicity is the strong point of this model, which combines solid and reliable design, Unite experience, and a classic well-known operating mode.

Features:

1. 009+098 help arm system: The higher position installed help arms design allows more flexible operation. Available to lock the arm at any position that needs.

2. Adopt rugged & durable one-piece casting jaws

3. Adjustable pressing shovel helps to press tyre with less effort.

Additional information

External locking rim dimensions

10~21"

Internal locking rim dimensions

12~24"

Max.Wheel diameter

≤1000mm (39")

Max.Wheel width

≤355mm (14")

Working Pressure

8-10bar (116-145 psi)

Opitonal Power supply

110 V (1 ph)/ 220 V (1 ph/3 ph)/ 380 V (3 ph)

Optional Mottor power

0.55/0.75/1.1 kw

Noise Level

<75 dB

Dimension(main body)

1130*900*1050mm (3.7*3.0*3.4ft)

N/G weight(main body)

241/269 kg (530/592 lbs)
